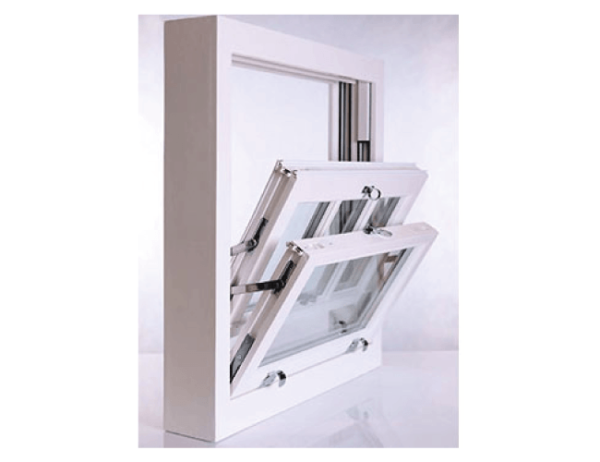

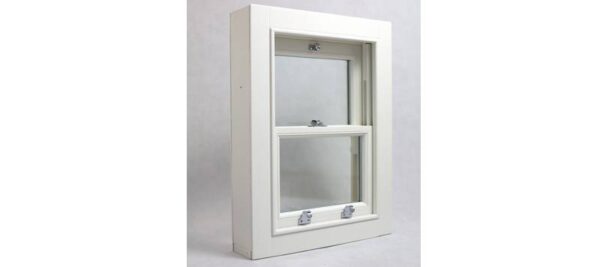

Sliding Sash Spiral Balance Windows

An alternative to traditional sash and box case windows, offering easy cleaning, U-Values as low as 1.0W/m2K.

Sliding Sash Depth 50mm
Height of Head Drip 63mm
Standard Windows -sash ratio 1:1 Other options available please contact us
Resistance to harsh weather conditions confirmed by BM TRADA (BS EN)
Stability of shape due to the use of laminated timber
Good insulation properties certified by Mobilne Laboratorium
We use weather­resistant Teknos Gori paints which are very durable and resistant to sunlight.
We offer both opaque and translucent Teknos Gori paints.
Dual colour frames are available upon request.

  • Tilt & Slide
  • Any RAL colour
  • Easy Clean
Get a quote now >



COLOUR

Frames are available in a wide range of RAL colours or any other specified by the client. We use weather­resistant Teknos Gori paints which are very durable and resistant to sunlight. We offer both opaque and translucent Teknos Gori paints. Dual colour frames are available upon request.

PROPERTIES

– stability of shape due to the use of laminated timber,
– good insulation properties certified by Mobilne Laboratorium ,
– resistance to harsh weather conditions confirmed by BM TRADA (BS EN)
– we also offer anti-burglar windows which are certified by BM TRADA (belt 24) and SBD

DECORATIVE ELEMENTS

The most common decorative elements are glazing bars and horns.

Timber

For the production of frames, we use the following species of wood: pine, oak and meranti. Other types of timber are available on customer’s request. We use 80­100-year-old pest­free timber coming from trusted FSC­certified suppliers.



MATERIALS

Wood 3-ply laminated/glued; softwood – pine; hardwood – meranti, oak
Hardware pulleys, grips and locks in different colours (gold, white, chrome matt/shiny, silver); weights built in frames
Glazing Insulated glass; 4/16A/4LE 4LE/12A/4/12A/4LE or another chosen configuration
U value 1.0 – 1.6

STANDARD HEIGHTS (MM)

445 595
745 895
1045 1195
1345 1495
1645

STANDARD WIDTHS (MM)

483 625
910 1195
1337 1765
2334



1.3, 1.4

Glass

Windows may be single, double or triple glazed. Triple glazed units have the best insulating properties. We offer a large selection of glass types:-

– Acoustic
– energy efficient
– ornamented
– fireproof
– anti-burglar
– solar control
– self cleaning

We also offer one­way mirrors, other types of custom-made glass and warm spacer bars which increase thermal insulation of a window unit.

Security

Security

We can offer 'Secure by Design' on our window and door ranges.

Energy Efficient

Energy Efficient

U Values from 0.7, A* Energy Rated, and environmentally conscious products.

Quality

Quality

Many of our products comply with FSC, PAS 23/24, CE Marking, and are tested by BM Trada.

Project Management

Project Management

Professional advice and guidance for all building projects.
